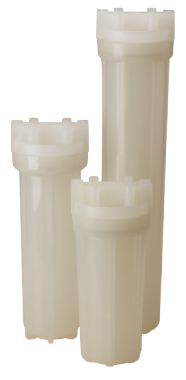

Pentek All Natural Series
Help maintain high standards of purity and performance required in critical contamination control systems and processes. These housings can also be used for a variety of other applications where purity, quality, filtration and economy are required.
- An economical solution to fluoro-polymer, stainless steel or PTFE housings
- Pure polypropylene components – no fillers, colorants, plasticizers or lubricants
- Ultra-smooth contact surfaces prevent bacterial adhesion and build-up
- Resists DI water and other inorganic solutions
- Resists stress cracking
- FKM O-rings provide dependable sealing
Specifications
Temperature (Min):
40 °F
Temperature (Max):
100 °F
Pressure (Min):
40 psi
Pressure (Max):
100 psi
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 150132 | #10 Standard w/Mounting Bracket Cap w/Double Cap Plugs | 3/4" | NPT |
| 150134 | #12 Standard w/ Mounting Bracket Cap w/222 Cartridge Sealing Cap w/Double Cap Plugs, w/o V-bead w/Drain | 3/4" | NPT |
| 150135 | #20 Standard w/Mounting Bracket Cap w/Double Cap Plugs and Sump Drain | 3/4" | NPT |
| 150141 | #20 Standard w/Mounting Bracket Cap w/Extended 222 Cartridge Sealing Cap w/Double Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150150 | #10 Standard w/Mounting Bracket Cap w/o Cap Plugs | 3/4" | NPT |
| 150154 | #12 Standard w/Mounting Bracket Cap w/222 Cartridge Sealing Cap w/o Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150156 | #20 Standard w/Mounting Bracket Cap w/o Cap Plugs | 3/4" | NPT |
| 150158 | #20 Standard w/Mounting Bracket Cap w/Extended 222 Cartridge Sealing Cap w/o Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150512 | #12 Standard "White" w/Mounting Bracket Cap w/222 Cartridge Sealing Cap and Double Cap Plugs | 3/4" | NPT |
| 150514 | #20 Standard "White" Mounting Bracket Cap w/222 Cartridge Sealing Cap and Double Cap Plugs | 3/4" | NPT |
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 150132 | #10 Standard w/Mounting Bracket Cap w/Double Cap Plugs | 3/4" | NPT |
| 150134 | #12 Standard w/ Mounting Bracket Cap w/222 Cartridge Sealing Cap w/Double Cap Plugs, w/o V-bead w/Drain | 3/4" | NPT |
| 150135 | #20 Standard w/Mounting Bracket Cap w/Double Cap Plugs and Sump Drain | 3/4" | NPT |
| 150141 | #20 Standard w/Mounting Bracket Cap w/Extended 222 Cartridge Sealing Cap w/Double Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150150 | #10 Standard w/Mounting Bracket Cap w/o Cap Plugs | 3/4" | NPT |
| 150154 | #12 Standard w/Mounting Bracket Cap w/222 Cartridge Sealing Cap w/o Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150156 | #20 Standard w/Mounting Bracket Cap w/o Cap Plugs | 3/4" | NPT |
| 150158 | #20 Standard w/Mounting Bracket Cap w/Extended 222 Cartridge Sealing Cap w/o Cap Plugs and w/o V-bead | 3/4" | NPT |
| 150512 | #12 Standard "White" w/Mounting Bracket Cap w/222 Cartridge Sealing Cap and Double Cap Plugs | 3/4" | NPT |
| 150514 | #20 Standard "White" Mounting Bracket Cap w/222 Cartridge Sealing Cap and Double Cap Plugs | 3/4" | NPT |
