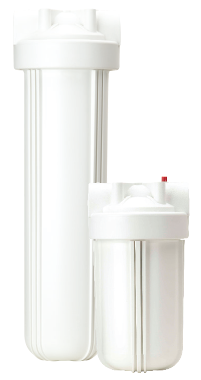

Pentek Big White Series
Pentair Big White Filter Housings offer the versatility to meet all of your large-capacity needs.
- Large capacity housing suitable for high flow applications
- Available in 10" and 20" lengths
- Available with pressure relief button on inlet side of cap
- Accepts up to 4-1/2" diameter cartridges
Specifications
Temperature (Min):
40 °F
Temperature (Max):
100 °F
Pressure (Min):
40 psi
Pressure (Max):90 psi
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 166144 | #20 Big White White/White w/PR | 1-1/2" | NPT |
| 166083 | #10 Big White White/White w/PR | 1" | NPT |
| 166141 | #20 Big White White/White w/o PR | 1" | NPT |
| 166142 | #20 Big White White/White w/PR | 1" | NPT |
Pressure (Max):100 psi
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 166081 | #10 Big White White/White w/PR | 3/4" | NPT |
Pressure (Max):90 psi
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 166144 | #20 Big White White/White w/PR | 1-1/2" | NPT |
| 166083 | #10 Big White White/White w/PR | 1" | NPT |
| 166141 | #20 Big White White/White w/o PR | 1" | NPT |
| 166142 | #20 Big White White/White w/PR | 1" | NPT |
Pressure (Max):100 psi
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| 166081 | #10 Big White White/White w/PR | 3/4" | NPT |
